Midea Water-cooled Heat Exchanger Systems VRF Air Conditioner

The outdoor units of the VRF MDV-V4 Plus W system with liquid-cooled condenser can be used (when using glycol solutions as a coolant) all the year round. Ideal solution for maintaining the necessary climatic conditions in the premises of data centers, premises with telecommunication and server equipment. Modular principle of connecting blocks to obtain the necessary performance. The model range is 25.2, 28, 33.5. The maximum power of the module of 3 units is 101.5 kW (36 HP). The principle of free combination of power blocks in the module is used.

Wide application range

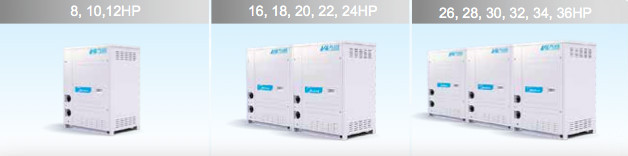

The main units capacity range from 8HP up to 36HP. Maximum 59 indoor units (with capacity up to 130% of total main units) can be connected in one refrigeration system.



The main units capacity range from 8HP up to 36HP. Maximum 59 indoor units (with capacity up to 130% of total main units) can be connected in one refrigeration system.

Water-cooled VRF Midea V4 Plus W series air condition

1 High efficiency, DC inverter compressor, DC motor and high efficient heat exchanger
2 Capacity up to 36HP, 59 more indoor units

3 Flexible system design and maximized comfort

4 New fashion design

Introduction ( Water-cooled VRF Midea V4 Plus W series air condition ):

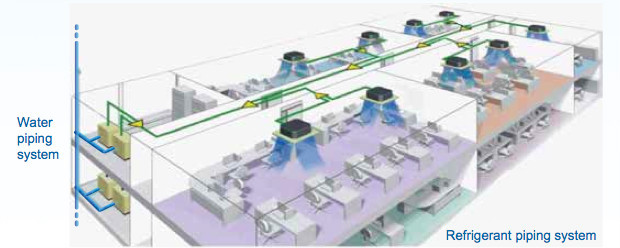

Midea V4 Plus W series VRF(variable refrigerant flow) air conditioner is the perfect combination of water and refrigerant systems, which combine water delivery pipe and refrigerant piping perfectly, refrigerant piping connect with indoor units, while water delivery pipe connect with cooling twoer/ boiler.

The main unit achieves the world's largest capacity of 36HP, and provide the highest energy efficiency for cooling and heaing. V4 Plus W series boast excellent energy saving feaures, flexible system design and mazized comfort.

In addition to traditional cooling towers/ boilers, there are more water source options, including river water, soil, solar energy, sea water, lake water, ground water, waste heat from production, sewage or waste water.

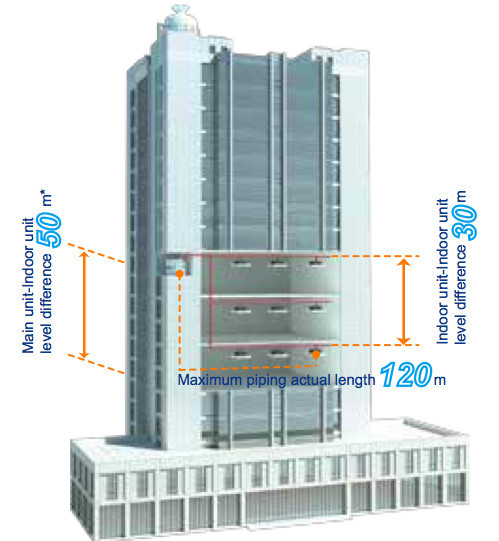

Long piping length

Total piping length: 300m

Max. actual piping length: 120m

Max. level difference between IDU-ODU: 50m




No water leakage

No water pipe installed indoors, no water leakage risks.
